M12 PCB Panel Connector, PG9 Thread Rear Mount, 8 Pin Male Plug
  • M12 PCB Panel Connector, PG9 Thread Rear Mount, 8 Pin Male Plug
M12 PCB Panel Connector, PG9 Thread Rear Mount, 8 Pin Male Plug

M12 PCB Panel Connector, PG9 Thread Rear Mount, 8 Pin Male Plug

Part Number:
M12-M-A-P5-04/05/06/08/12
General Description:
This type of M12 PCB Panel Mount Connector owns through hole Pins. It can realize mass soldering by reflow oven and widely used in fields of industry automation system, robots,automization factory.

Product Description

M12 connectors conform to IEC 61076-2-104

Product Features:

Products Type: M12 Circular Connector

Contact Body Type: Male

Coding Type: A Coding, B Coding.

Plug Type: straight type

Wiring Method: PCB Through Hole Soldering

Contacts: 4 pin 5 pin 6 pin 8 pin 12 pin

Installation Method: Rear PCB Panel Mount

Part Number:M12-M-A-P5-04/05/08/12

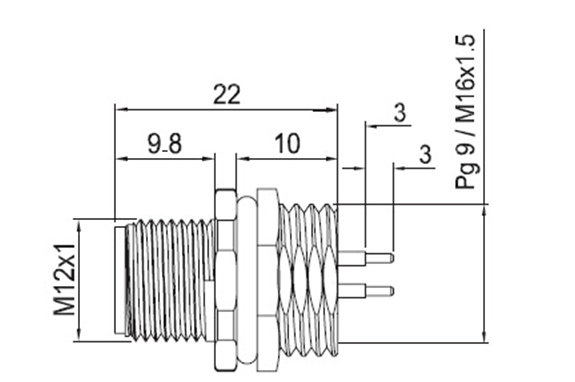

Dimensions Drawing



The hole place arranges(Comply with the needle direction)



Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ~+85℃

Cable diameter ≤ φ5.0-8.0mm


Specification

Number of Contacts              2,        3,        4,        5,        6,              8                12

Rated Voltage                                       120V                                     60V             30V

Rated Current                                        4A                                        2A             1.5A

Contact Resistance  <5mΩ

Insulation Resistance  >100MΩ

Pollution Degree  3

Temperature Range  -20℃ to +85℃

Degree of Protection  IP67 when mated

Mating Times  100 cycles

Nom Pin φ                                        1.0±0.03                               0.8±0.03          0.6±0.03

Wire Gauge                                         22AWG                               22AWG              26AWG

Cable Jacket  PVC or PUR

Material of Housing  Brass Nickel Plated

Material of lnsertion  PA66+GF UL94V-0

Material of Contact   Male Brass/Female Phosphor Bronze ,Gold Plated
