3 PIN 4 PIN M5 Male Connector Molded Cable A Coding Straight

Product Category:

Products > Circular connector >M5 Connector/M5 cable

Part Number:
M5-M-A-S-03/04

General Description:
M5 male plug molded cable is mainly used to connect host and various sensors such as temperature sensor, heat-sensitive sensor, photosensitive sensor, photoelectric sensor, acoustic sensor etc.

Product Description

Product Features：

Products Type: M5 Circular Connector

Contact Body Type: Male

Coding Type: A Coding

Plug Type: Straight

Contacts: 3 pins 4 pins

Installation Method: Screw Front Mount

Part Number:M5-M-A-S-03

M5-M-A-S-04

Dimension Drawing

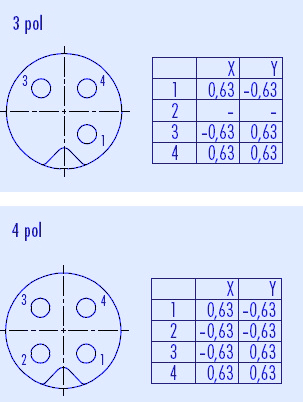

The hole place arranges(Comply with the needle direction)

Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ～+85℃

Cable diameter ≤ φ3.3mm

Specification

Number of Contacts 3, 4

Rated Voltage 60V

Rated Current 1A

Contact Resistance <5mΩ

Insulation Resistance >100MΩ

Pollution Degree 3

Temperature Range -20℃ to +85℃

Degree of Protection IP67 when mated

Mating Times 100 cycles

Nom Pin φ 0.48±0.03

Wire Gauge 26AWG

Cable Jacket PVC or PUR

Material of Housing Brass Nickel Plated

Material of lnsertion PA66+GF UL94V-0

Material of Contact Male Brass/Female Phosphor Bronze ,Gold Plated
