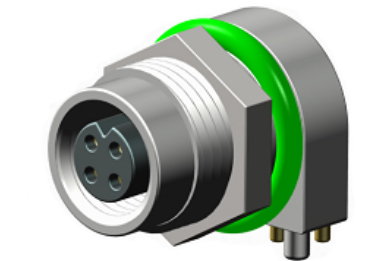

M5 circular waterproof sensor connector 90 degree PCB
  • M5 circular waterproof sensor connector 90 degree PCB
Send Inquiry Now
M5 circular waterproof sensor connector 90 degree PCB

M5 circular waterproof sensor connector 90 degree PCB

Product Category:

Products > Circular connector >M5 Connector/M5 cable

Part Number:
M5-PCB-connector 90 Degree
General Description:
M5 circular waterproof sensor connector 90 degree PCB connection is used for sensor connection wiring harness customization, industrial self-designing, automobile sensor brake, actuator and automatic control system connection. M5 sensor connector and brake connector are divided into M5 injection-molded straight male connector, M5 injection-molded straight female connector, M5 PCB front-mounted female connector, and M5 plate welding type straight male with self-locking thread , PCB board type M5 male header, M5 board end front/rear female header. The front lock nut is easy to

Product Description

M5 male plug molded cable is mainly used to connect host and various sensors such as temperature sensor, heat-sensitive sensor, photosensitive sensor, photoelectric sensor, acoustic sensor etc.

The hole place arranges(Comply with the needle direction)


Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ～+85℃

Cable diameter ≤ φ3.3mm


Specification

Number of Contacts 3, 4

Rated Voltage 60V

Rated Current 1A

Contact Resistance <5mΩ

Insulation Resistance >100MΩ

Pollution Degree 3

Temperature Range -20℃ to +85℃

Degree of Protection IP67 when mated

Mating Times 100 cycles

Nom Pin φ 0.48±0.03

Wire Gauge 26AWG

Cable Jacket PVC or PUR

Material of Housing Brass Nickel Plated

Material of lnsertion PA66+GF UL94V-0

Material of Contact Male Brass/Female Phosphor Bronze ,Gold Plated
